LTi DRiVES Products
Rainbow Tech Co., Ltd.
The distributor of LTi DRiVES (LUST) in Thailand

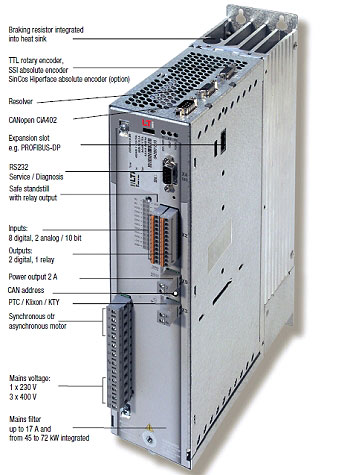

Servo drives c-Line CDE3000

The positioning expert for synchronous servo motors in the economy class

CDE3000 is economy class frequency inverter with excellent control characteristics at a very good price. The CDE3000 Drive controllers are avalible in power classes from 375 Watts up to 110 KW.
Seven compact sizes in two voltage variants:
• 3,0 - 7,1 A rated current at 1 x 230 V AC power input
• 2,2 - 210 A rated current at 3 x 400 V AC power input
Features summary:
• For Synchronous motors
• Position control system
• A line filter built-in
• Brake chopper built-in
• Simple programmable PLC motion
• CANopen inside
• STO safety functions
• Many technology features are available without an extra charge
