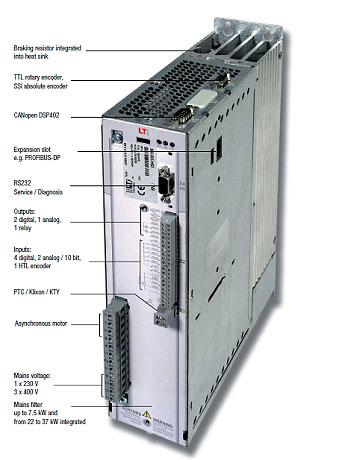

Frequency inverter c-Line CDB3000

The positioning expert for asynchronous motors in the economy class

CDB3000 is economy class frequency inverter with excellent control characteristics at a very good price. The CDB3000 Drive controllers are avalible in power classes from 375 Watts up to 110 KW.
Seven compact sizes in two voltage variants:
• 3.0 - 7.1 A rated current at 1 x 230 V AC power input
• 2.2 - 210 A rated current at 3 x 400 V AC power input
• up to 200 % overload capacity
Features summary:
• For Asynchronous motors
• Position control system
• A line filter built-in
• Brake chopper built-in
• Feedback for Encoders built-in
• Simple programmable PLC motion
• CANopen inside
• STO safety functions
• Many technology features are available without an extra charge
